Woven Fabric Inspection Machine, Model – IWP / SU – SWBO

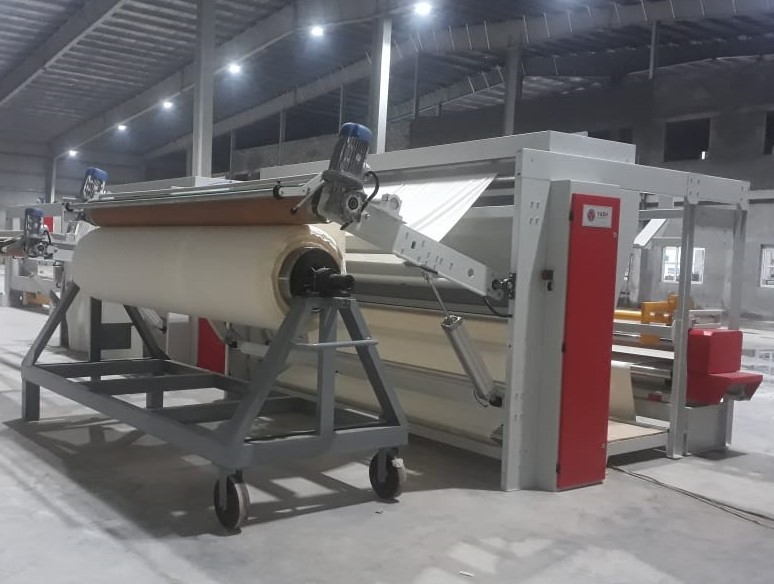

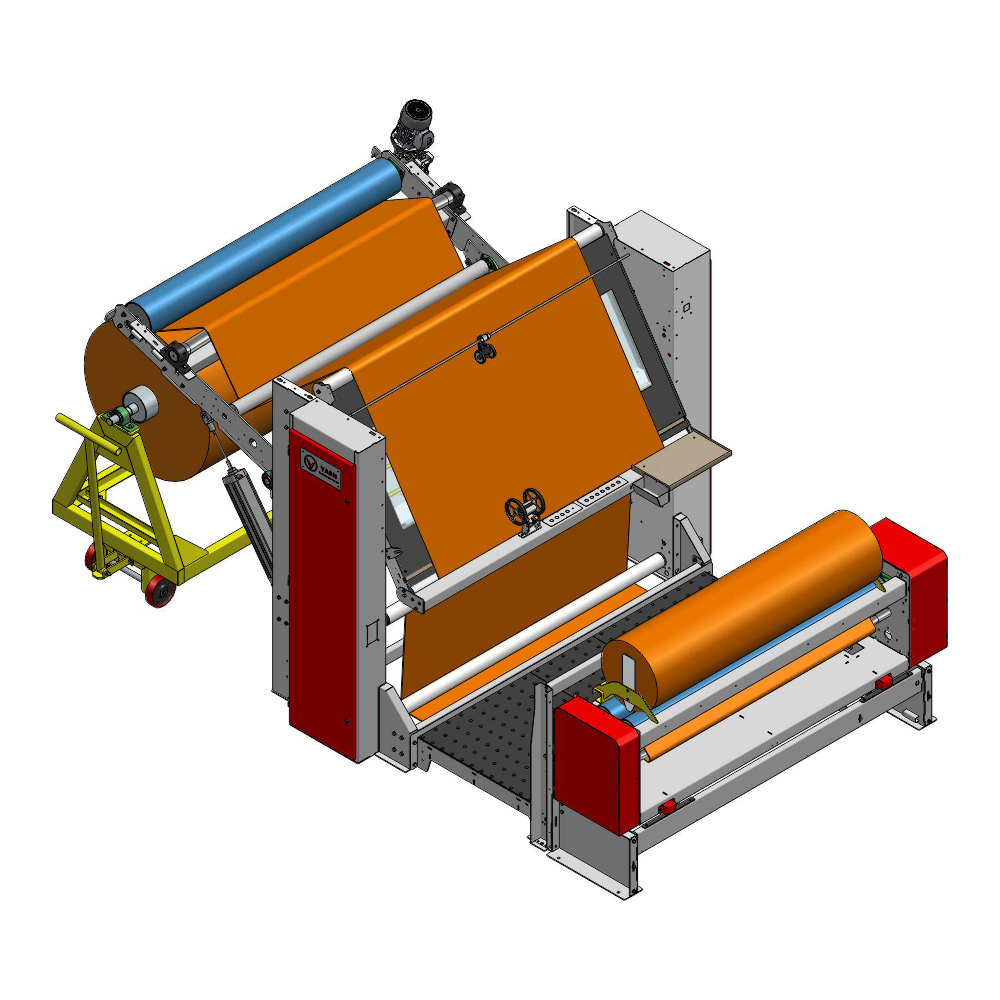

The Yash Inspection machine IWS.09 is designed for efficient inspection and straight winding of 'A' frame big batches into small rolls, of stable woven fabrics
Request For Quotation
Working Width
1800 mm
2200 mm
3400 mm
:
Choose an option
W.W. 1800 mm
W.W. 2200 mm
Clear
Select the Options:
Electronic counter meter M67
(
+
₹
14,500
)
Electronic counter meter M67
(
+
₹
14,500
)
Selvedge shifting device for thick selvedge M87
(
+
₹
35,000
)
Electronic counter meter M67
(
+
₹
14,500
)
Selvedge shifting device for thick selvedge M87
(
+
₹
42,000
)
Product price:
₹
550,000
Total options:
Order total:
Woven Fabric Inspection Machine, Model - IWP / SU - SWBO quantity
Buy Now
Authentication Required
For the price and place order, please Sign-in.
I'm a registered user
I'm a new user
Technical Data
Specification
Downloads
Video
Technical Data
Stable Woven Fabric
Uniform tension control
Surface unwinding & winding
30° tilted Inspection table
Electronic counter meter
M67
Hood on Inspection table
M72
Paper tube storage rack
M86
Selvedge shifting device for thick selvedge
M87
Automatic cross cutting
M105
Automatic roll weighing
M95
Software for fault data recording
Barcode label printing
Specification
Working Width (WW)
1800 – 3400 mm
Input
Neat Pile / Roll Dia. 500 mm
Output
Roll Dia. upto 1200 mm
Illumination
Top and Bottom
Machine Speed
5 – 50 mtrs. / min.
Downloads
Download DataSheet
